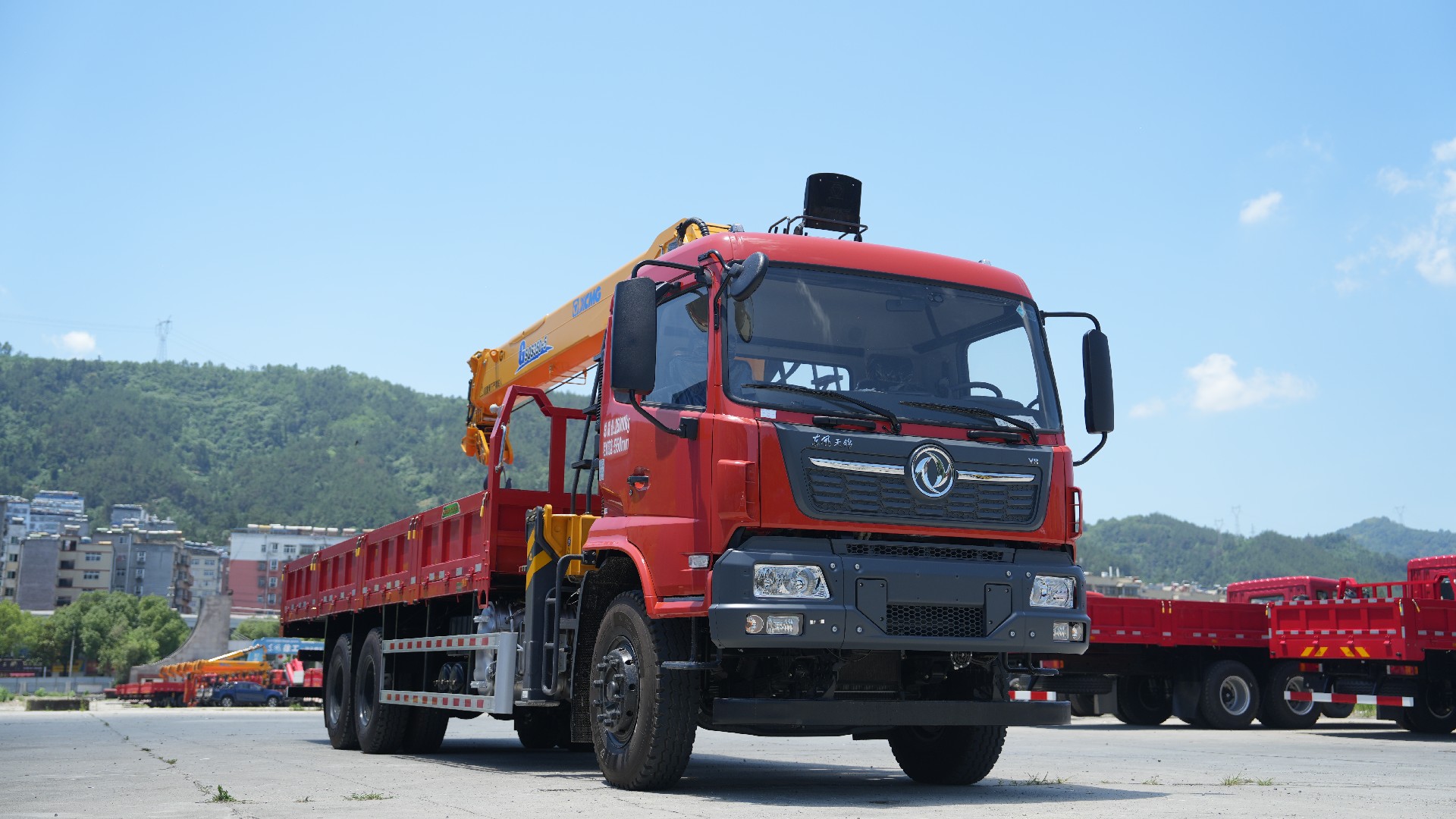

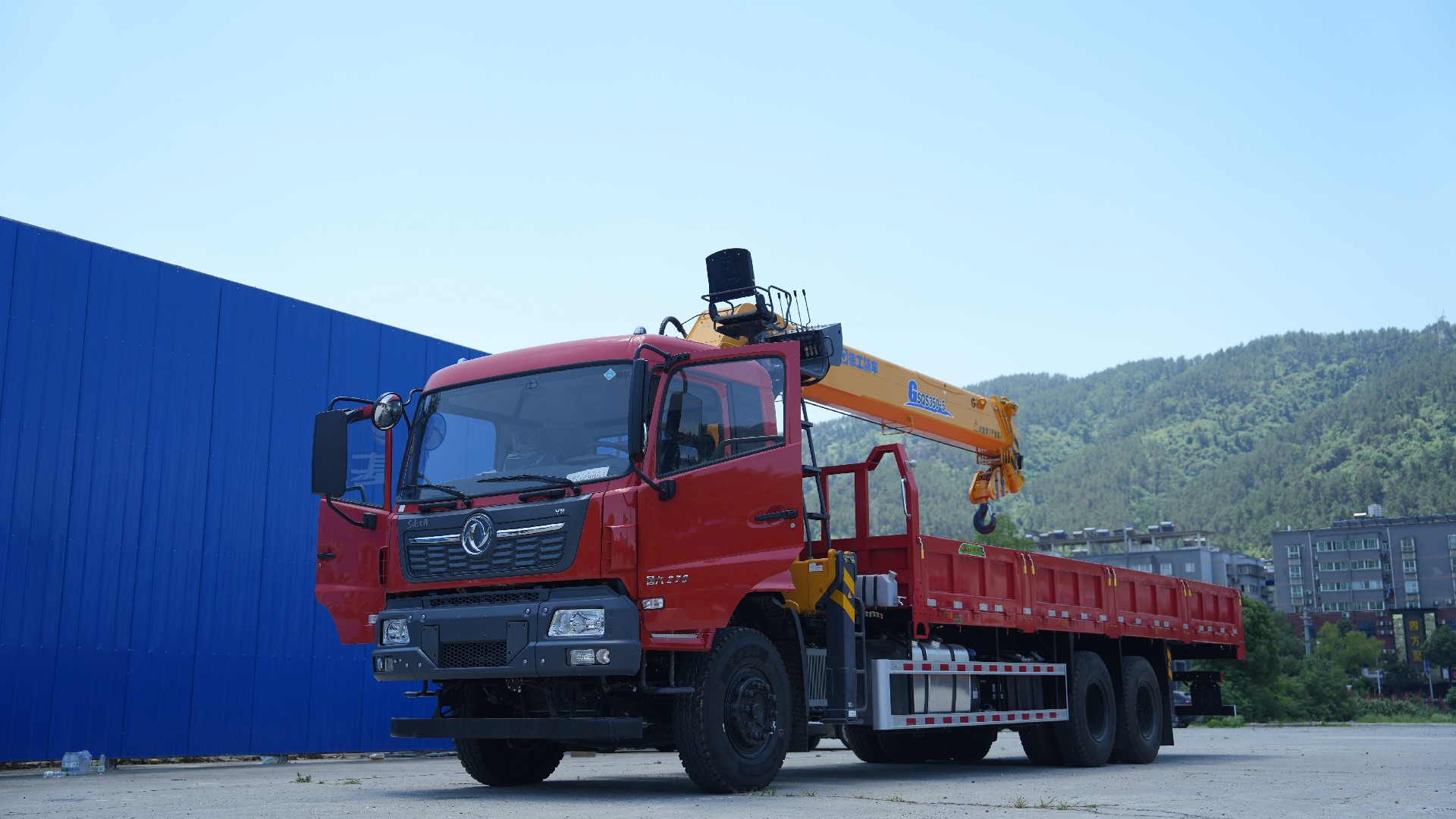

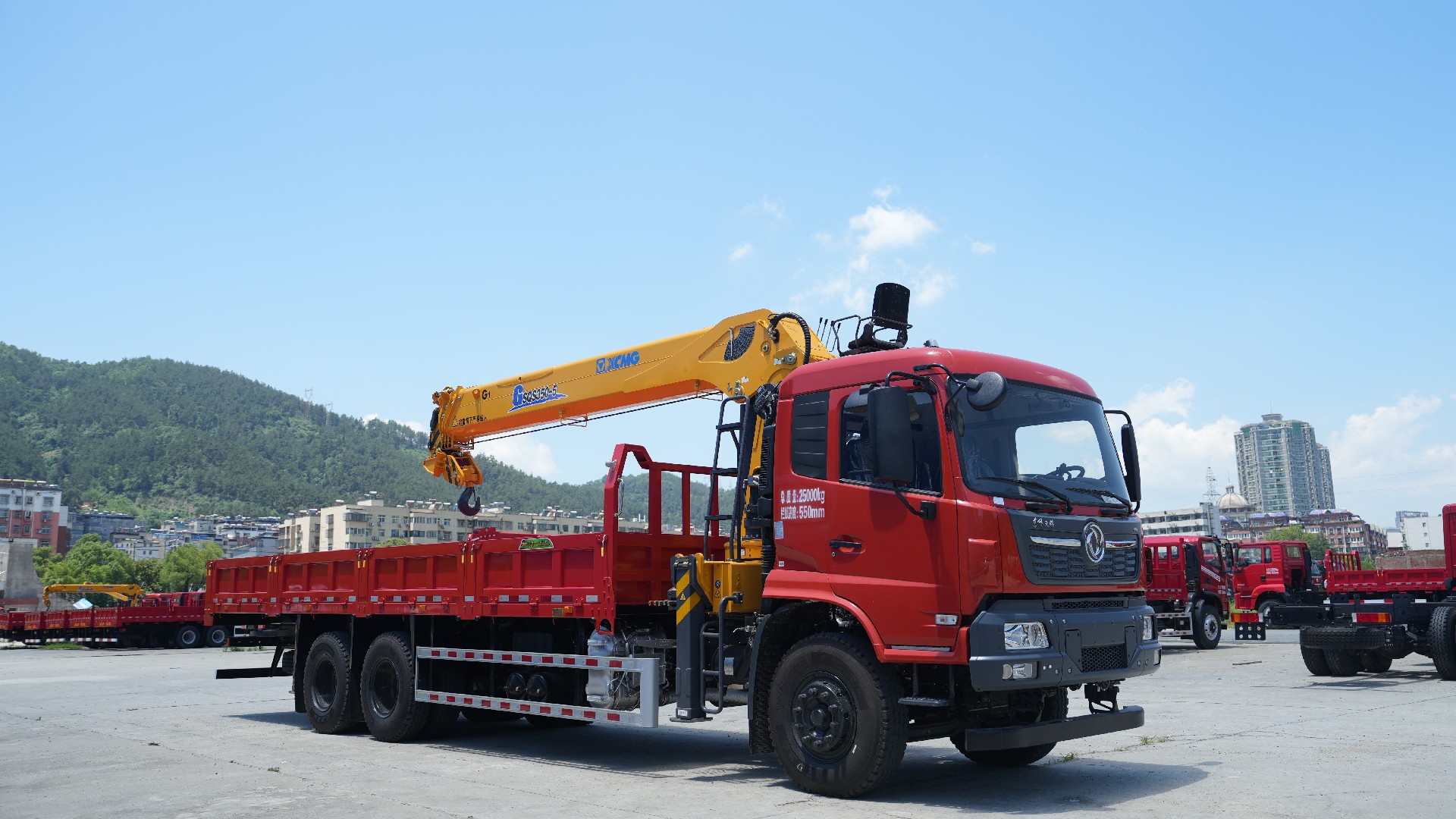

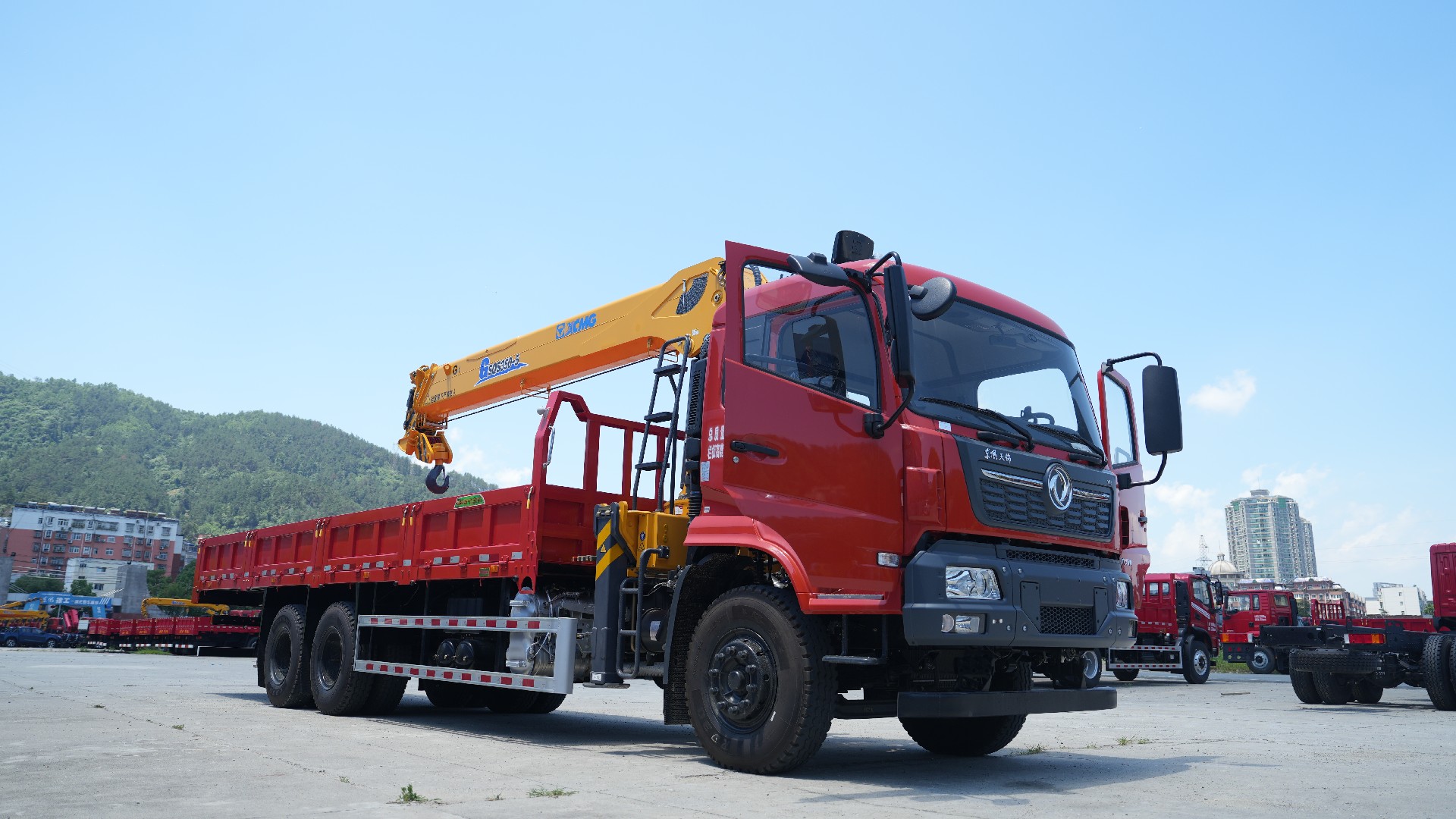

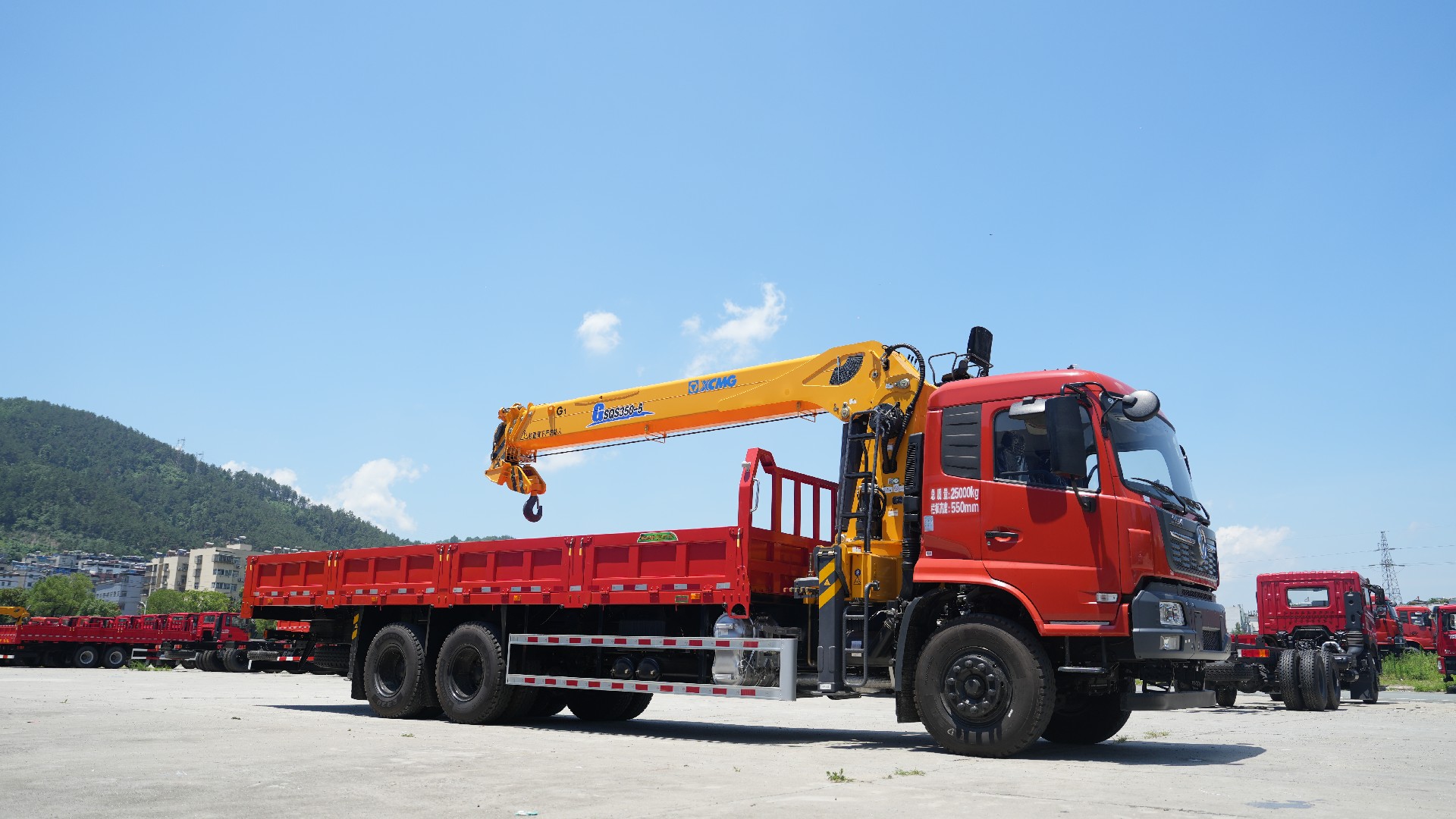

Engine

YCS06270-60

Gearbox

Shaanxi Gear 9JS119TA Gearbox (with Synchronizer)

Wheelbase

4350+1350, 4800+1350, 5700+1350mm

Front/rear axle

6T/10Tx2, 6T/13Tx2

Driver cab

D560 Luxury flat-top engineering cab

Frame

300mm straight through three-layer with wing plate

Tyre

11.00R20 18PR

Leaf Spring

8/10

Number of passengers allowed

3 people

Overall dimensions

12000, 10310, 10900×2500, 2550×3750, 3850, 3950, 3980, 3990

Container size

6600, 6700, 7100, 7200, 7300, 8000, 8100, 8200, 8300, 8400, 8500, ×2400, 2450×550, 600, 800

Curb Weight

15100, 15600, 15900, 16200, 16500, 16800, 17200, 18100, 18400, 18800

Other configurations

With power take-off, remote throttle, original air conditioner, airbag seat, driving recorder, central locking remote control key, multi-function steering wheel, four-in-one lock

Main performance parameters

Maximum lifting torque

kN•m

360

Maximum lifting mass

kg

14000

Maximum working range

m

19.1

Maximum lifting height

m

21

Boom length

m

5.82~19.6

Amplitude range

°

0~75

Rotation angle

°

360

Outrigger span

m

2.45~7.56

Lifting speed

m/min

≥ 17

(4 multiplier/4th layer)

Product weight

kg

5723

Hydraulic system parameters

System rated flow

l/min

63+50

Rated working pressure

MPa

28

Recommended power

kw

54

Working environment temperature

℃

-25℃ ~ +40℃

Hydraulic oil tank capacity

L

240

Components name

Configuration Introduction

Lifting hook

Adoption of swivel frame flip device can realize automatic fixation of the hook in the final position.

Boom assembly

Single cylinder lasso + telescopic arm (basic arm + four-section telescopic arm)

Turntable

Used to arrange the lower support point and operating device of the lifting mechanism, slewing mechanism, boom and luffing.

Outrigger

Large span square box legs (2.45m~7.56m)

Control system

Standard high seat control mode

Rotating mechanism

360° continuous rotation

Luffing mechanism

Single luffing cylinder

Lifting mechanism

Hydraulic motor drive

Hydraulic system

Balance valve, multi-way valve, hydraulic pipeline, realize various actions of the crane

Others

Double-sided ladder, radiator, work light, wireless over-winding protection, remote start and stop.

Name

Configuration Introduction

Hydraulic oil

XA130 Hydraulic oil (low temperature)

Meet the hydraulic oil requirements of special environmental areas

Operating method

Wireless remote control

Remote control electro-hydraulic proportional control

Four-way control

Seat control on both sides of the base + control on both sides of the bottom of the crane

High seat control

Seat maneuvering at the tail of the boom for a wider maneuvering field of view

Auxiliary winch + auxiliary hook

Auxiliary winch + auxiliary hook

Small tonnage and high height lifting operation, fast hook speed and higher lifting efficiency

Force Limiter

Torque limiting device

The force limiter host monitors the torque in real time and limits the action when overloaded

Anti-overwinding unloading device

Automatic alarm and limit movement when the hook is lifted close to the end position
