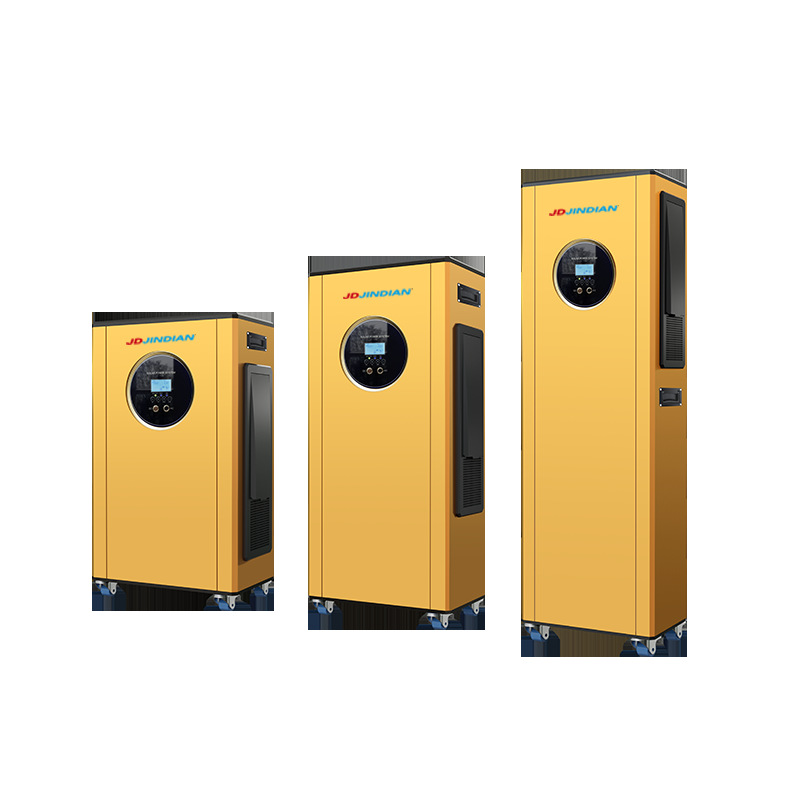

ALL IN ONE Solar Energy Storage System JD-S300

Introducción del producto

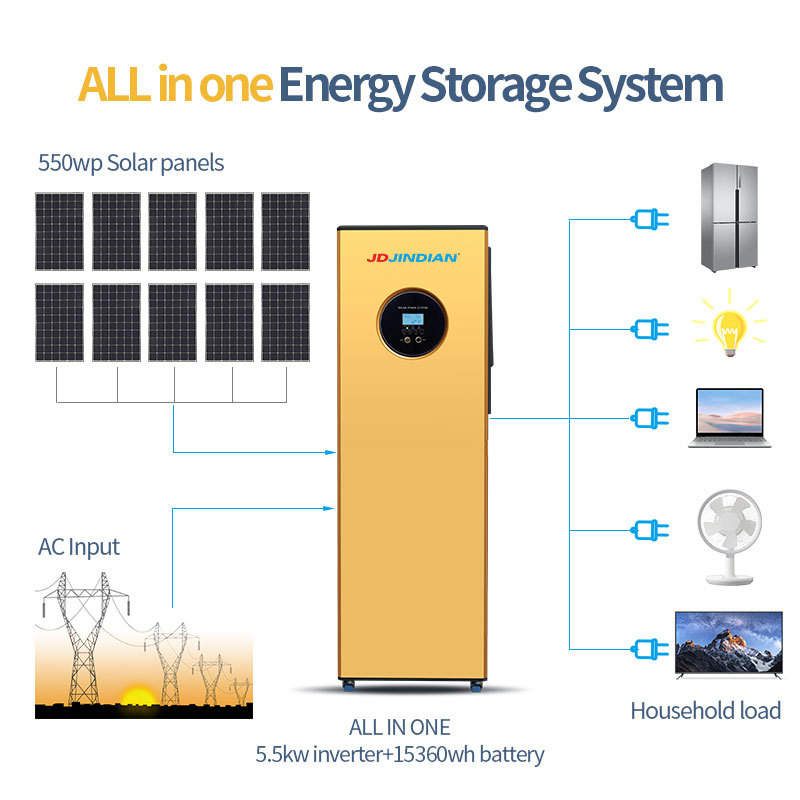

All-in-one solar + storage + UPS solution
Military-grade LFP battery (ultra-safe, long-life)
Instant power backup (<20ms switch) for sensitive electronics
MPPT maximizes solar energy harvest
BMS ensures safety and longevity

ALL IN ONE Solar Energy Storage System JD-S300

Introducción del producto

All-in-one solar + storage + UPS solution
Military-grade LFP battery (ultra-safe, long-life)
Instant power backup (<20ms switch) for sensitive electronics
MPPT maximizes solar energy harvest
BMS ensures safety and longevity

Descripción del Producto

Parámetro

Model Name

JD-S300

Operating temperature range

-10-55°C

IP Grade

lp20

AC input Voltage Range

170-280Vac

Frequency

50Hz/60Hz

Max.AC charging current

80A

PV Input


Max.power

5500W

Max.open voltage

550V

MPPT input voltage range

120-450Vdc

Max.input current

100A

AC Output


Rated power

5500VA/5500W

Voltage

230Vac+5%

Rated Current

23.9A

PV Output


Max.Power

5500W

Max.Charging Current

100A

Battery Type

Li-Battery

Voltage Range

40-60Vdc

Rated Voltage

51.2Vdc

Battery Energy

15360WH

Battery Capacity

300Ah

DOD

93%

Weight

≈124KG

Size

1370x422x245mm
